Steel Door Panel forming Machine
Profile drawing The thickness is 0.6mm--0.8 cold rolled steel and coilmaterial width 925mm. The whole line flowchart Coil car loading--5Thydraulic decoiler--9rollsleveling servo-feeder----No 1hinges holes punching---No 2crossbar head cut to
Send InquiryChat Now
电 话: +86-15961895852
E-mail:
sales@kehengmixing.com
Product Details

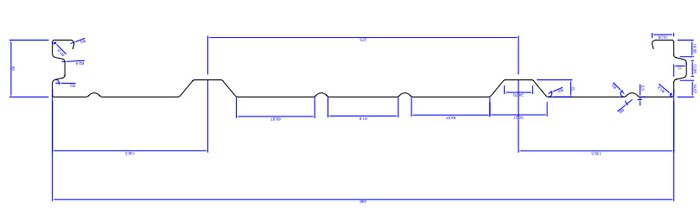

Profile drawing
The thickness is 0.6mm--0.8 cold rolled steel and coil material width 925mm.

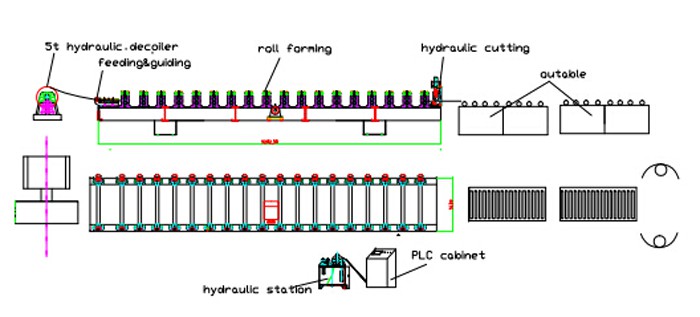

The whole line flowchart
Coil car loading--5T hydraulic decoiler--9 rolls leveling –servo-feeder----No 1 hinges holes punching---No 2 crossbar head cut to connect with left post--No 3 crossbar head cut to connect with right post--No 4 left post cut--No 5 right post cut---roll forming----Turk head---hydraulic flying shear---4M auto outables
Main parameter of the machine
1. Main machine power: 7.5kw made in China
2. Roller station: 17stations
3. Forming speed:max 25m/min
4. Machine line speed:15--20m/min
5. Thickness: 0.6-0.8mm cold rolled steel or galvanized steel etc
6. Main shaft dia: ￠70mm material: 45﹟forge steel
7. Roller material: Cr12 quenched 58°-62°,chromed
8. Hydraulic power:5.5kw
9. Way of drive: 1.0 inch chain drive
10. Way of cutting;hydraulic automatic cutting after forming
11. Hydraulic station pressure;20Mpa
12. Cutting tolerance:+/-1.5mm
13. Way of control:PLC control ,Panasonic made in Japan
14. Machine demension:10500mmx1500mmx1000mm
15. Way of control:PLC control,Panasonic made in Japan.
16. Yaskawa inverter made in Japan
17. Omron encoder made in Japan
18 .Voltage requirements: 380V 50HZ 3Phase or according to the customer's request.
Product Advantage
1.Technological process of the production line is concise, compact layout, advanced technology, put an end to produce defects, comprehensive energy consumption is low, simple operation and maintenance, low operating cost.
2.Production line adopts the standard electrical, instrumentation components and equipment components meet the needs of the buyers,Control system has the maintainability and expansibility; And ensure the advanced technology, reliable control, during normal operation can automatic complete all real-time detection and adjusting function, have interlocking function to prevent wrong operation, Do all the operation, monitoring on main operating platform .Display and handle the alarm.
Company Profile
Wuxi HRF Science & Technolog Co.,Ltd located in Wuxi city,Jiangsu province which is close to Shanghai international airport ,we enojoy convenient transportation and advantageous location with which supply good business opportunities for the investors home and abroad.And our company was established in 2009, has the specialized technical team, provides the high quality product and the high quality service for you.
Our company are specialized in designing,manufacturing,sales and services in the field of cold roll forming machines, we can supply the stud-track forming machines,c/z purlin forming machines,roof &wall forming machines,expressway guardrail forming machines, metal deck forming machines ,steel tile forming machines ,PU sandwich panel production line as well as slitting lines and cut-to-length machines lines and so on.
"Copra" software made in Germany is a kind of professional software for designing the cold roll forming machines.In the past years,we devoted ourselves to studying,training and putting into production.Through continous efforts made by our staffs,we already improved a lot on the machines quality and won good repution in the worldwide.
We are ready to establish the business relations with the overseas customers and we also believe" the oppotunity here,here you are"
Our commitment is quality and service , our goal is customer satisfaction . We will, as always, be pragmatic and promote mutually beneficial cooperation and common development Of you
Certified product
Customer Photos
FAQ
1. Why should you choose from us?
Professionalism. We are a professional manufacturer in Slitting & Cut to Length (CTL) line machine for more than 20 years. We can provide cost-effective & high quality slitting and cut to length machines. So far we have exported to more than 80 countries, including Argentina, Bangladesh, Belarus, Bolivia, Brazil, Chile, Egypt, Indonesia, Iran, India, Malaysia, Pakistan, Philippines, South African, Turkey, Russian, UAE, Saudi Arabia, Vietnam, etc. Our dedicated sales &technology &service team of specialists is always customer-oriented.
2. How about the safety ?
We exclusively collaborate with specialists in cargo safety and our suppliers are chosen for their promptness and high standards. We have our own professional staff to tied the machines firmly to the inside of container by steel rebar. We always deliver the machines on time and keep the customer well informed about the shipping information and drawing.
3. What is the quality of your machine?
The first class Quality. We manage to offer our partners the best customer care, products and services by using the latest technologies in the branch. The components we provide are of best quality, to make sure our machines can be running very well for decades.
4. What service we can get from your company?
-VIP Service. Due to our standards, we manage to build long-lasting relationships with all our customers. We are 24/7 online available for you to answer your questions and solve your problems.
5. Quality Inspection
The machines of our company have many certificates like ISO 9001, CE, SGS, etc. Before the shipping, we have a series of quality check system, includes 3 times of inspection for every production procedure. First inspection needs the workers to check and sign on the test report. Second inspection involves department leaders to check and sign on the test report. The Third inspection needs professional inspector to check and ensure the machines are qualified. We also give 18 month warranty time to the customer
