Product Details Forming Machine

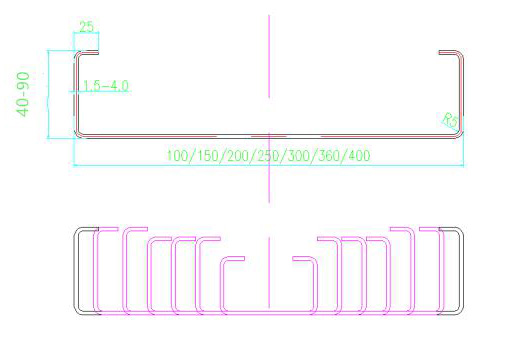

C purlin profile drawing:

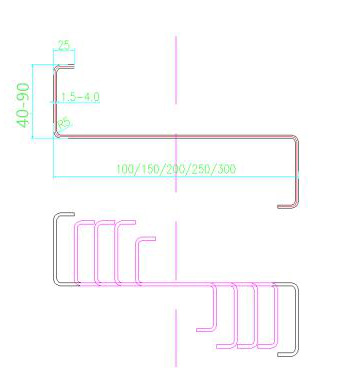

Z purlin Profile drawing:

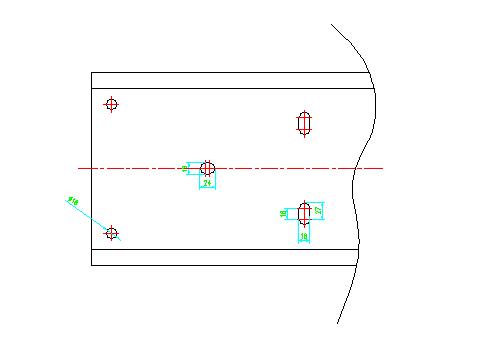

Holes punching size will be confirmed by the buyer .

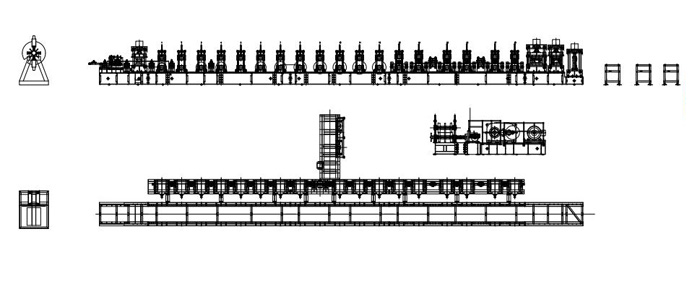

The whole line flowchart:( left input to right output)

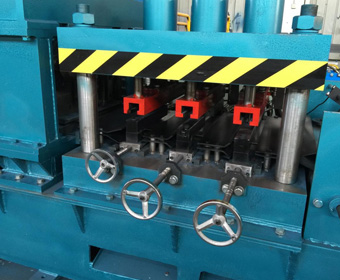

5T hydraulic decoiler &leveling machine( 2 in 1)-- servo-feeder--hydraulic holes punching( 3 sets) --hydraulic pre-cut- guiding--Roll Forming- --multi-cutting system  --6m motorized table

Basic Specification of the line:

NO	ITEM	PARAMETER	REMARK
1.	Suitable material	cold rolled steel coil,G350Mpa
. 2	Finished  purlin demension	1)C/Z purlin width: 100-400mm  automatic adjustment 2) C/Z purlin flange height:40-90mm automatic adjustment 3）Lip size:25mm 4) Thickness: 1.5-4mm

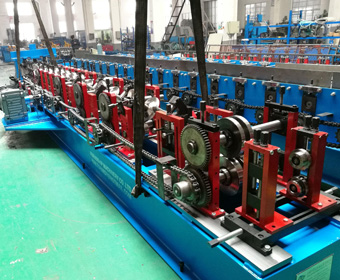

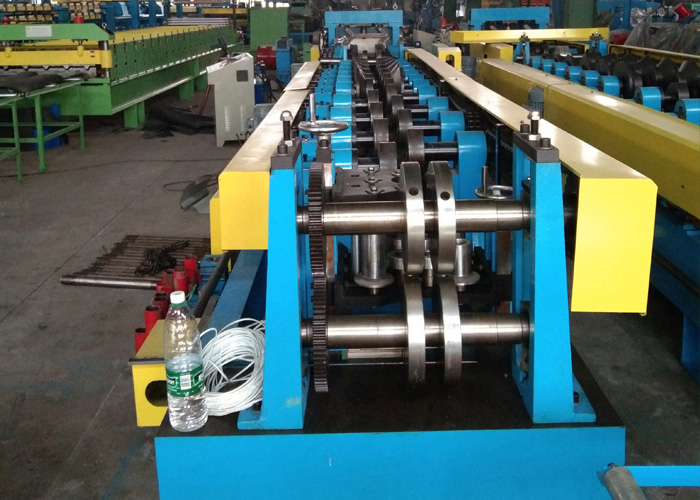

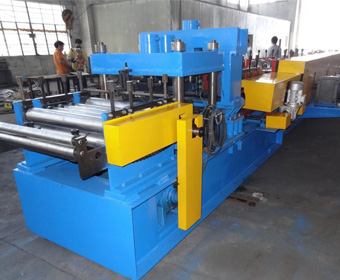

3.	Roll Forming structure	Casting stands structure with 16 nos + series of vertical rollers	Casting stands
4.	Main forming machine motor   power(kw)	30kw	Siemens motor made in china
5.	9 rolls Leveling motor( 4+5 rolls)	5.5kw	motor,made in china

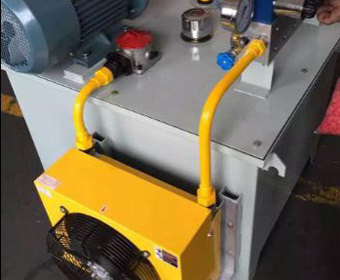

6.	Hydraulic  station  power(kw)  for  main	11kw	Motor made in china
	forming machine
7.	Motors for the height adjustment	1.5kw( 2-0.75kw)	Motor made in china
8	Motor for purlin width adjustment	1-1.5kw	Motor made in china
9.	Hydraulic station ( 2 in 1)	3kw	motor,made in china
10.	Servo-feeder motor for punching	4.4kw	Yaskawa brand
11.	Servo-feeder motor for moveable cutting	7.5kw	Yaskawa brand

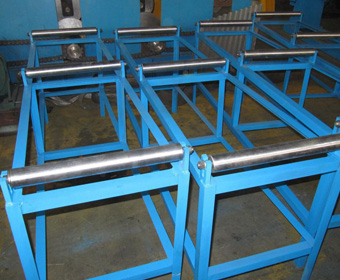

12	Motor for motorized table	2.2kw
13	Total power(kw)	About 67kw
14	Power supply requirement	380V,50Hz,3Ph
15	Machine dimension(LxWxH,m)	31mx2.5mx1.6m
16	Machine color	Blue with yellow color combination

Company Profile Wuxi HRF Science & Technolog Co.,Ltd located in Wuxi city,Jiangsu province which is close to Shanghai international airport ,we enojoy convenient transportation and advantageous location with which supply good business opportunities for the investors home and abroad.And our company was established in 2009, has the specialized technical team, provides the high quality product and the high quality service for you. Our company are specialized in designing,manufacturing,sales and services in the field of cold roll forming machines, we can supply the stud-track forming machines,c/z purlin forming machines,roof &wall forming machines,expressway guardrail forming machines, metal deck forming machines ,steel tile forming machines ,PU sandwich panel production line as well as slitting lines and cut-to-length machines lines and so on.
 "Copra" software made in Germany is a kind of professional software for designing the cold roll forming machines.In the past years,we devoted ourselves to studying,training and putting into production.Through continous efforts made by our staffs,we already improved a lot on the machines quality and won good repution in the worldwide.
We are ready to establish the business relations with the overseas customers and we also believe" the oppotunity here,here you are"
  Our commitment is quality and service , our goal is customer satisfaction . We will, as always, be pragmatic and promote mutually beneficial cooperation and common development Of you
Certified product Customer Photos FAQ 1. Why should you choose from us?  Professionalism. We are a professional manufacturer in Slitting & Cut to Length (CTL) line machine for more than 20 years. We can provide cost-effective & high quality slitting and cut to length machines.         So far we have exported to more than 80 countries, including Argentina, Bangladesh, Belarus, Bolivia, Brazil, Chile, Egypt, Indonesia, Iran, India, Malaysia, Pakistan, Philippines, South African, Turkey, Russian, UAE, Saudi Arabia, Vietnam, etc. Our dedicated sales &technology &service team of specialists is always customer-oriented. 2. How about the safety ?   We exclusively collaborate with specialists in cargo safety and our suppliers are chosen for their promptness and high standards. We have our own professional staff to tied the machines firmly to the inside of container by steel rebar. We always deliver the machines on time and keep the customer well informed about the shipping information and drawing.
 3. What is the quality of your machine?  The first class Quality. We manage to offer our partners the best customer care, products and services by using the latest technologies in the branch. The components we provide are of best quality, to make sure our machines can be running very well for decades.
4. What service we can get from your company?  -VIP Service. Due to our standards, we manage to build long-lasting relationships with all our customers.  We are 24/7 online available for you to answer your questions and solve your problems.    5. Quality Inspection  The machines of our company have many certificates like ISO 9001, CE, SGS, etc. Before the shipping, we have a series of quality check system, includes 3 times of inspection for every production procedure. First inspection needs the workers to check and sign on the test report. Second inspection involves department leaders to check and sign on the test report. The Third inspection needs professional inspector to check and ensure the machines are qualified. We also give 18 month warranty time to the  customer Related Products
